KYL-500S

PRODUCT > RF MODULES > KYL-500S

KYL-500S

Features



1、Frequency Band: 433MHz, 450MHz,470MHz,868MHz,915MHz etc ISM Frequency Band;

2、8 channels, if needed, 16/32/64 channels are available to satisfy various configuration of communication at the same time;

3、Baud Rate:1200、2400、4800、9600、19200、38400bps;

4、Data format:8N1/8E1/8O1(Other formats can also be provided, such as 9-bit data bits to meet the requirements of multi-machine communication);

5、Interface:RS232/RS485/TTL;

6、Transparent data transmission,transparent data interface used in transceivers is for meeting many standard or nonstandard user protocols. Any false data generated in air can be filtrated automatically (What has been received is exactly what has been transmitted);

7、 Industrial-grade design, uses high-quality devices and high-precision Temperature compensation crystals to meet the needs of all-weather work. Reliable operating temperature up to -35°C to +80°C;

8、Big data buffer area, the transceiver can transmit unlimited data frames with flexible user program.the terminal can continuously send data to the module without buffer overflow and data loss;

9、Compatible with KYL series other modules with medium power (1W, 2W), high power (5W), convenient and flexible networking;

10、Complies with standard EN 300220 and ARIB STD-T67。



Application

AMR Automatic Meter Reading;

Building automation, security, wireless monitoring and control of room equipment,Access Control System;

Wireless alarm and security systems, Wireless Queuing machine and Wireless medical containers;

Wireless POS, PDA wireless smart terminal ;

Wireless data transmission, automatic data collection system;

Wireless LED display, Responder and intelligent traffic;

Converting RS-485 cable to wireless communication, such as PLC。



Technical specification

                                                          KYL-500Parameters
FeaturesRangeRemark
Power supply D.C.5v--
Frequency433Mhz450-470Mhz
Output power50mW--
Transmitting Current <40mA--
Receiving Current<20mATTL interface
Sleeping Current<20uASpecify when place order
Receiver sensitivity-120dBm1200bps
-113dBm9600bps
Transmission distance600m-1000m Line-of-sight, the height of antenna 1.5m
Dimension28mm*15mm*10mmWithout Antenna connector

Table: Transmission distance 、Receiver sensitivity and baud rate

Baud rate(Bps)Receiver sensitivityTransmission distance( Line-of-sight)
1200-120dbm1000m
2400-118dbm800m
4800-116dbm650m
9600-113dbm500m
19200-110dbm300m

 Pin Definitions

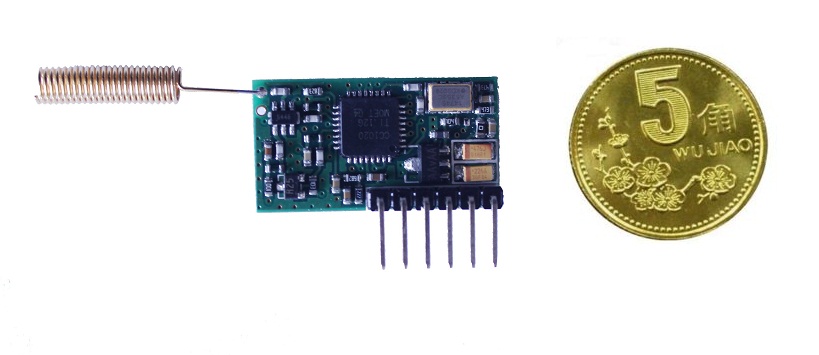

                                                     KYL-500U Interface schematic


Interface name

Function description

I/O

Level

Remark

1

GND

Power Ground

-



2

VCC

Supply(DC)

-

5 V


3

RXD/TTL

Data receiving(TTL level)

I

TTL


4

TXD/TTL

Data transmitting(TTL Level)

O

TTL

5

SLEEP

Sleeping control

I

TTL

Lower level seeeping

6

RST

Reset input

I

TTL

Lower level reset

 Table: Channel and RF Frequency



CH NO.FrequencyCH NO.FrequencyCH NO.FrequencyCH NO.Frequency
1429.0325MHZ2430.0325MHZ3431.0325MHZ4432.0325MHZ
5433.0325MHZ6434.0325MHZ7435.0325MHZ8436.0325MHZ



The Function-indicator light

1、The LED indicator light will glitter red for 0.5S once after switched on.
2、 The LED indicator light will glitter green continually while receiving data from air.
3、 The LED indicator light will glitter red continuously when transmitting data into air after receiving from COM.
4、 If the module enables the sleep function, LED indicator light is always dark.

Timing Diagram

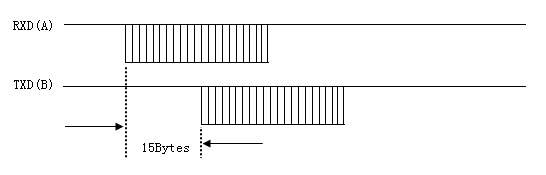

1、When Module A transmits data and module B receives data

 That is, the delay time that the terminal A (connected to the module A) sends data to the terminal B (connected to the B module) by wireless. Which be fixed to the time for transmitting 15 bytes. This time is related to the air baud rate, but not to the interface baud rate. details as follows:



Table: Baud rate and delay time

Baud rate(Bps)

Delay time(ms)

19200

8

9600

15

4800

30

2400

60

1200

120

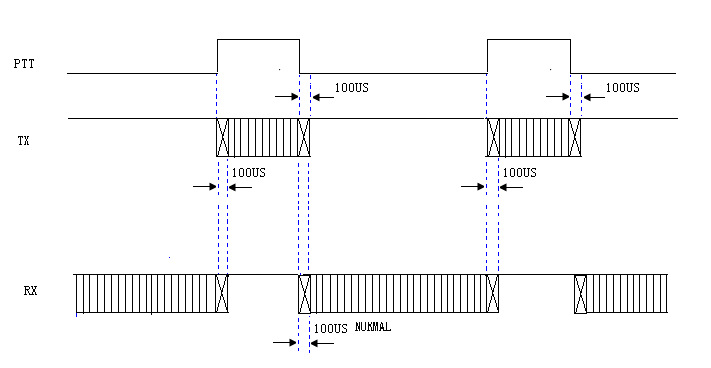

2、Module transceiver conversion time

 That is, the time for converting from the receive state to the transmit state, or from the transmit state to the receive state. During this time (100us), the module cannot receive air data.


How to use KYL series micro power wireless data module

Power supply:

    +3.3~6.0V DC,According to the needs of users, it can share the power with other devices, but please select a power supply with a better ripple factor.If conditional, 5V regulators can be used to supply power alone. It is recommended not to use the switching power supply. If you must use the switching power supply, please pay attention to the interference due to switching pulse.In addition, if there are other devices in the system equipment, it must be grounded reliably. Otherwise, it can be self-contained, but it must be completely separated from the city electricity. The maximum output current of the power supply should be more than 1.5 times the maximum operating current of the module.

Packaging accessories

1、Standard accessories

        1、1pc KYL-500U module。

        2、9pin flat cable。

        3、1pc antenna(about 10cm)

        Pic.:Standard accessories




标准配件直头10cm

2、Selectable accessories

1、TTL interface programming cable。(for users to set parameters through RS232 interface of the computer)

    2、Power supply

    3、Selectable antenna。(Users can choose antenna if need)

    Pic.:Selectable accessories



1020L可选配件





Previous: KYL-500L
Next: KYL-210
