KYL-300U

Features



1、Frequency Band: 433MHz, 450MHz,470MHz,868MHz,915MHz etc ISM Frequency Band;

2、8 channels, if needed, 16/32/64 channels are available to satisfy various configuration of communication at the same time;

3、Baud Rate:1200、2400、4800、9600、19200、38400bps;

4、Data format:8N1/8E1/8O1(Other formats can also be provided, such as 9-bit data bits to meet the requirements of multi-machine communication);

5、Interface:USB;

6、Transparent data transmission,transparent data interface used in transceivers is for meeting many standard or nonstandard user protocols. Any false data generated in air can be filtrated automatically (What has been received is exactly what has been transmitted);

7、 Industrial-grade design, uses high-quality devices and high-precision Temperature compensation crystals to meet the needs of all-weather work. Reliable operating temperature up to -35°C to +80°C;

8、Big data buffer area, the transceiver can transmit unlimited data frames with flexible user program.the terminal can continuously send data to the module without buffer overflow and data loss;

9、Compatible with KYL series other modules with medium power (1W, 2W), high power (5W), convenient and flexible networking;

10、Complies with standard EN 300220 and ARIB STD-T67。




Application



  AMR Automatic Meter Reading;

  Building automation, security, wireless monitoring and control of room equipment,Access Control System;

  Wireless alarm and security systems, Wireless Queuing machine and Wireless medical containers;

  Wireless POS, PDA wireless smart terminal ;

  Wireless data transmission, automatic data collection system;

  Wireless LED display, Responder and intelligent traffic;



Technical specification

                                                            KYL-300U Parameters
FeaturesRangeRemark
Power supply D.C.USB3.3-6.0v
Frequency433Mhz450-470Mhz
Output power500mW --
Transmitting Current <1.5A--
Receiving Current<350mA--
Sleeping Current20uASpecify when place order
Receiver sensitivity-123dBm1200bps
-116dBm9600bps
Transmission distance2-3Km Line-of-sight, the height of antenna 1.5m
Dimension80mm*45mm*19mmWithout Antenna connector

Table: Transmission distance 、Receiver sensitivity and baud rate


Baud rate(Bps

Receiver sensitivity

Transmission distance(Line-of-sight)

1200

-120dbm

3000m

2400

-118dbm

2500m

4800

-116dbm

2000m

9600

-113dbm

1600m

19200

-110dbm

1000m


 Pin Definitions

                                            KYL-300U Interface schematic



Interface name

Function description

Level

Remark

1

GND

Power Ground




2

D+

Supply(DC)

5 V



3

D-

Data receiving(TTL level)

TTL



4

VCC

Data transmitting(TTL Level)

TTL


 Table: Channel and RF Frequency

CH NO.FrequencyCH NO.FrequencyCH NO.FrequencyCH NO.Frequency
1429.0325MHZ2430.0325MHZ3431.0325MHZ4432.0325MHZ
5433.0325MHZ6434.0325MHZ7435.0325MHZ8436.0325MHZ
The Function-indicator light

1、The LED indicator light will glitter red and green for 0.5S once after switched on.

2、The LED indicator light will glitter green continually while receiving data from air.

3、The LED indicator light will glitter red continuously when transmitting data into air after receiving from COM.


Timing Diagram

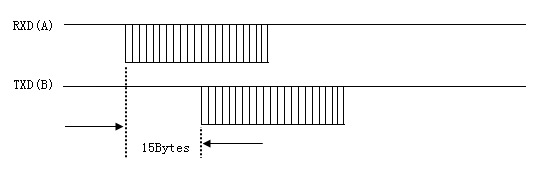

1、When Module A transmits data and module B receives data

 That is, the delay time that the terminal A (connected to the module A) sends data to the terminal B (connected to the B module) by wireless. Which be fixed to the time for transmitting 15 bytes. This time is related to the air baud rate, but not to the interface baud rate. details as follows:


Table: Baud rate and delay time

Baud rate(Bps)

Delay time(ms)

19200

8

9600

15

4800

30

2400

60

1200

120

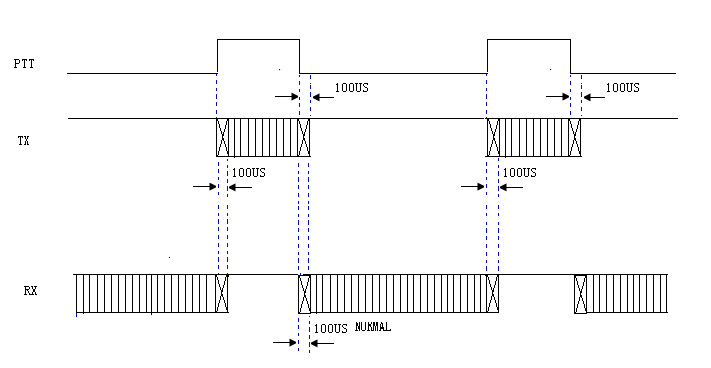

2、Module transceiver conversion time

 That is, the time for converting from the receive state to the transmit state, or from the transmit state to the receive state. During this time (100us), the module cannot receive air data.

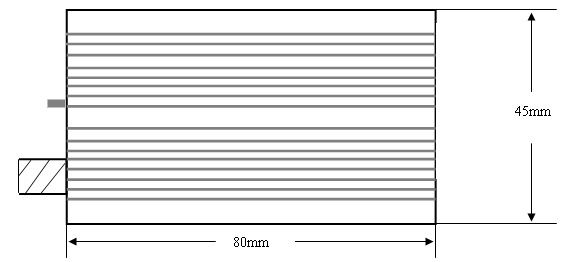

Installation size


Packaging accessories

1、Standard accessories

    1、1pc KYL-300U module。

    2、9pin flat cable。

    3、1pc antenna(about 10cm)

    Pic.:Standard accessories



标准配件直头10cm

2、Selectable accessories

1、TTL interface programming cable。(for users to set parameters through RS232 interface of the computer)

    2、Power supply

    3、Selectable antenna。(Users can choose antenna if need)

    Pic.:Selectable accessories



1020L可选配件
