KYL-818P

KYL-818P

Features



8-way I/O Module can achieve wireless transmission in real time,the relay output of receiver module is connceting with ON-OFF input of the transmitter relay output.In other words,when the input of the transmitter switch on,the corespond relay output will be on at the same time.when the input of the transmitter switch off,the corespond relay output will be off at the same time.All channels are independent.No program,no wires,users can remote control switching.This product is widely-used in Industrial controller,wireless monitoring,waterworks automation and other projects.


一、KYL-818P Application diagram




二、KYL-818P Connection diagram








Application



Wireless water pump automatic control

       Wireless sound and light alarm lights

       Industrial remote control, industrial site monitoring

       Wireless car control

       Water plant automation

       Traffic Automation Control

       Environmental Monitoring System

       Oil pipeline monitoring system



Technical specification

                                                                KYL-818P Parameters

FeaturesRangeTypical valueRemark
Power supply D.C.12-30V24VOutput current>500mA
Transmission power
10W
Transmission distance10 km- Line-of-sight
Ourput No. -8 output-
Output type-RelayMaximum load capacity DC   220V5A
Input No. -8 input-
Input type I-Dry Contact-
Transmitting Current -1.5A-
Receiving Current-<50mA-
Dimension-145mm*90mm*40mm-

Remarks: The input type has been specified according to the customer's requirements. So can not be changed after shipment.。


 KYL-818P Terminals and hardware introduction

1、8-way Relay Output,the max capacity is up to 220V/5A.The same Ox(x=1,2,3,4,5,6,7,8)represent 2 contactor from a group.




Piic. 1:COM1-Switch output and power terminals

2、8-way input,support passive and active input

When choosing passive input,only need set a switch or a button between Ix(x=1,2,3,4,5,6,7,8)and GND,the ON OFF condition will be transmitted to remote output module,then transmit out.

When choosing active input,user need input a high or low level in the Ix(x=1,2,3,4,5,6,7,8)terminal ,the high level will disconnect ,the low level will close correspondly.Pay attention ,when no level input,the receiver output will disconnect.






                 Pic.2:COM1-Switch output and power terminals

  The Function-indicator light

1Power Indicator-PWR:Power on

2、Data indicator-T/R:Flashes once per second, indicating that the module is operating normally

3、Running lights-RUN:The indicator flashes when the module transmits/receives data each time

4-7:Switch output status indication D1-D4:The indicator light is on, indicating that the corresponding output channel is closed, otherwise it is disconnected

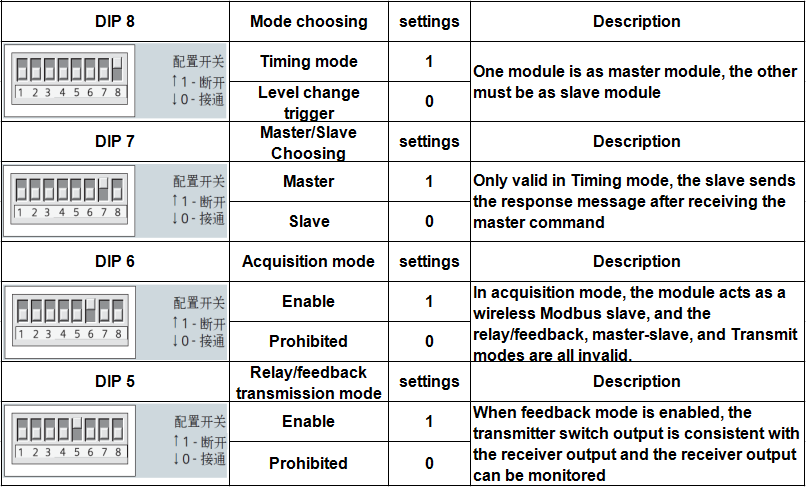

Dip Switch Definitions
1、

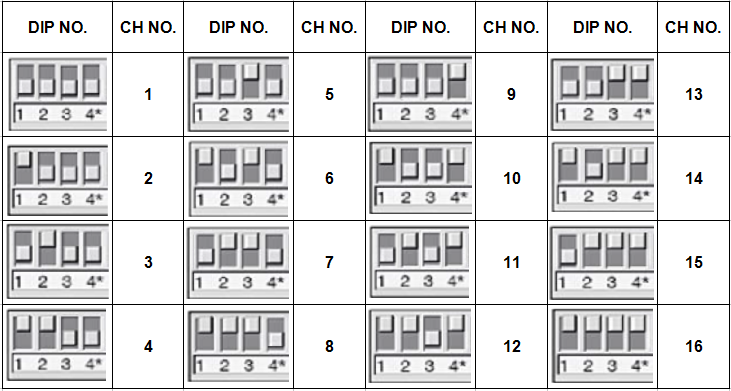

  DIP1-4:Channels choosing

2、DIP5-8:Working mode choosing


Remark:

    *Users generally use the inputting change sending mode, DIP7-ON;

    *To avoid more than two remote control systems working at the same time in one remote control range, the        module for different system should choose different channel (working frequency);

    *In timing mode, one must be the master and the other is the slave

    *It should be effect by re-power on the module after changing the DIP position.



Pin Definitions
Connection namePin No.Definition Remarks
COM1124VDC12-30V
2GNDGrounding of power supply
3NC-
4NC-
5NC-
6OUT1(O1)First channel relay dry contact output
7
8OUT2(O2)Second channel relay dry contact output
9
10OUT3(O3)Third channel relay dry contact output
11
12OUT4(O4)Fourth channel relay dry contact output
13
14OUT5(O5)Fifth channel relay dry contact output
15
16OUT6(O6)Sixth channel relay dry contact output
17
18OUT7(O7)Seventh channel relay dry contact output
19
20OUT8(O8)Eighth channel relay dry contact output
21
COM21IN1(I1)First group ON-OFF input
2GND
3IN2(I2)Second group ON-OFF input
4GND
5IN3(I3)Third group ON-OFF input
6GND
7IN4(I4)Fourth group ON-OFF input
8GND
9IN5(I5)Fifth group ON-OFF input
10GND
11IN6(I6)Sixth group ON-OFF input
12GND
13IN7(I7)Seventh group ON-OFF input
14GND
15IN8(I8)Eighth group ON-OFF input
16GND




Using Method



1、install the antenna to the module.

    2, in accordance with the use of demand, according to the above instructions set the DIP switch, connect          the corresponding switch input, switch output device.

    3, connect the power (12-30V), turn on the power switch, the power requirements of the output current needs        reach more than 500mA.

    4, At this point, the input of module can control the output of another module .

    5, the module is two-way transmission, that is, a module can as an input ,at the same time, can also be            used as a controlled output, and vice versa.

    6, Within the same remote control distance range if user using more than two sets of remote control system,        one should use a different operating frequency to avoid mutual interference.





Working Mode



1、Triger mode

       When ON-OFF input status changed,it will triger I/O Module to send the local status information. This          mode has fast speed,can be in real time.Only when input status changed,then will send the signal,the            energy consumption will be low.

   2、Timer mode

      At this mode, there should be one master and one slave module. The master will

      synchronize with the slave every 1s, means the master will transmits its condition to slave every 1S and       the slave will feedback its condition to master every 1S. If the time master cannot synchronize with           slave reaches at 3S, all contacts will disconnect. They connects until the master is synchronizing with         slave again. There will be 1s transmission delay at this mode.

   3、Collecting mode

      At collecting mode, DIP8(transmitting mode), DIP7(master/slave mode) and DIP5(repeater/feedback mode) are       all invalid. At this mode, module works as a Modbus slave, it can not transmit data actively. Master can       be a PC connecting with a wireless data module or other data terminal. Data terminal sends Modbus RTU

      command and requests slave feedback collection condition or control slave’s ON-OFF output. Slave’s ID         can be 1 to 254.

  4、Feedback/repeater mode

     At feedback/repeater mode, receiver will retransmit the command it received and make it reach longer            distance. It functions as a repeater. The transmitter will output related ON-OFF condition on its output        COM after receiving retransmitted command, meanwhile, the output indicator will be ON/OFF. Its output          condition will be the same with its input condition. If receiver didn’t receive the command, it will not      retransmit, feedback will fail. Master’s output condition will be not the same with its input. This            function can monitor receiver’s output results.If the user is not familiar with the product and is            unfamiliar with the method of use, all code switches should be pull to the ON position to test.





KYL-818P Other application



KYL-818 can work with same series I/O Module: KYL-813 or KYL-818 etc,to reach the function of centralized control,and centralized output (please indicate to sales when you set the purchase order).Please look the below diagram as example:


Ordering information

Standard products

Module NameRemark
 KYL-818UBi-directional, 2pcs of this RF modules will help you do wireless communication., no program, plastic housing, communication distance 600m-1km (Line of Sight) based on power 100MW
 KYL-818Bi-directional, 2pcs of this RF modules will help you do wireless communication., no program, plastic housing, communication distance 2km-3km (Line of Sight) based on power 800MW
 KYL-818HBi-directional, 2pcs of this RF modules will help you do wireless communication., no program, plastic housing, communication distance 7km-10km (Line of Sight) based on power 5W
 KYL-818PBi-directional, 2pcs of this RF modules will help you do wireless communication., no program, plastic housing, communication distance 8km-10km (Line of Sight) based on power 2-10W
KYL-818+668HBi-directional, 2pcs of this RF modules will help you do wireless communication., no program, plastic housing, communication distance 20km (Line of Sight) based on power 25W



Packaging accessories

1、Standard accessories

1、1pc KYL-818 module。

        2、1pc antenna

        Pic.:Standard accessories





2、Selectable accessories

1、Selectable antenna。(Users can choose antenna if need)

        Pic.:Selectable accessories
